Specifications |

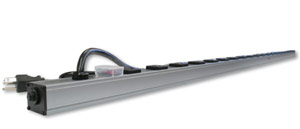

power strip with 24 plugs and turn on/off switch | 6 feet long body | 15 feet long cable | Descriptions | SS9004 |
|
| SYSTEM OVERVIEW | |
System overview: |
6 ft. vertical power strip, includes mounting clips |
Voltage compatibility: |
120VAC |
Frequency compatibility: |
50/60 Hz |
| OUTPUT | |
Output volt amp capacity (amps): |
15A |
Output watt capacity (watts): |
1800 |
Outlet quantity / type: |
24 Nema 5-15R |
Outlet spacing: |
2.795 in. |
| INPUT | |
Input connection type: |
Nema 5-15P |
Input cord length (ft.): |
15 |
Input cord length (m): |
4.572 |
Input plug features: |
Black |
Input cord gauge, type: |
14/3 SJT |
Recommended electrical service: |
15A 120V |
| LEDS ALARMS & SWITCHES | |
Switches: |

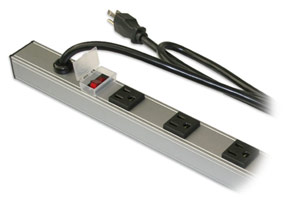

Lighted 2 position switch controls power to all outlets |
Locking switch cover: |
Transparent on/off switch cover prevents accidental turn-off |
| PHYSICAL | |
Unit weight (lbs): |
5.5 |
Unit weight (kg): |
2.497 |
Unit Dimensions (HWD/in): |
1.5 x 1.5 x 72 in. |
Unit Dimensions (HWD/cm): |
3.8 x 3.8 x 183 |
Material of construction: |
Aluminum |
Form factors supported: |
Supports vertical or horizontal mounting in rack enclosures, raceways and a variety of other applications |
Mounting accessories included: |
Includes mounting clips |
Housing color: |
Silver |
Receptacle color: |
Black |
AC line cord color: |
Black |
| CERTIFICATIONS | |
UL1363 (Power Tap): |
UL1363 |
cUL / CSA (Canada): |
cUL |
| WARRANTY | |
Product warranty: |
Lifetime |
